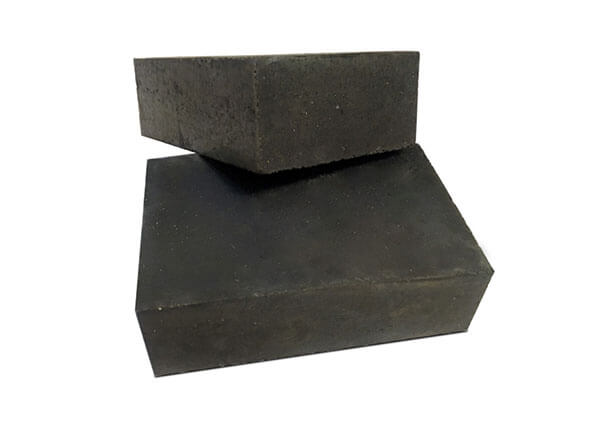

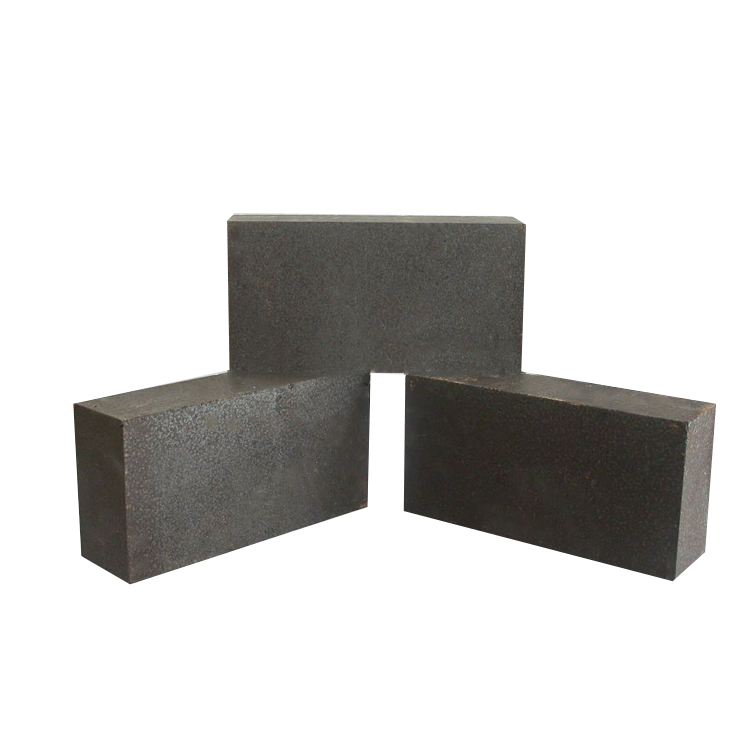

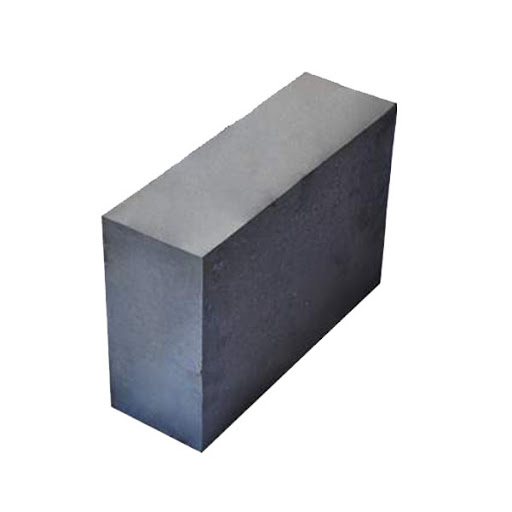

Magnesia Carbon Brick

Magnesia carbon bricks are made of fused magnesia or sintered magnesia, flake graphite, organic binders and antioxidants as raw materials, and various non-oxide additives are added. Magnesia carbon brick is a composite refractory material combined with a carbonaceous binder.

Characteristics:
1. Good high temperature resistance.
2. Strong resistance to slag.
3. Good thermal shock resistance.
4. Low creep at high temperature.

Application:
Magnesia-carbon bricks are mainly used for the lining of converters, AC electric arc furnaces, and DC electric arc furnaces, and the slag line of ladle.

Technical Data Sheet:

Item	Unit	Magnesia Carbon Brick
		MGC-10			MGC-12			MGC-14
		A	B	C	A	B	C	A	B	C
MgO	%	80	78	76	78	76	74	76	74	72
C	%	10			12			14
Apparent Porosity	%	4	5	6	4	5	6	4	5	6
Bulk Density	g/cm3	3.0	2.95	2.95	2.98	2.96	2.95	2.95	2.93	2.9
Cold Crushing Strength	MPa	40	35	30	40	35	30	40	35	30
Modulus of Rapture	MPa	8	7	6	8	7	6	12	10	8
		1450℃x30min
Application	Ladle Wall, Ladle Bottom, Slag Line
