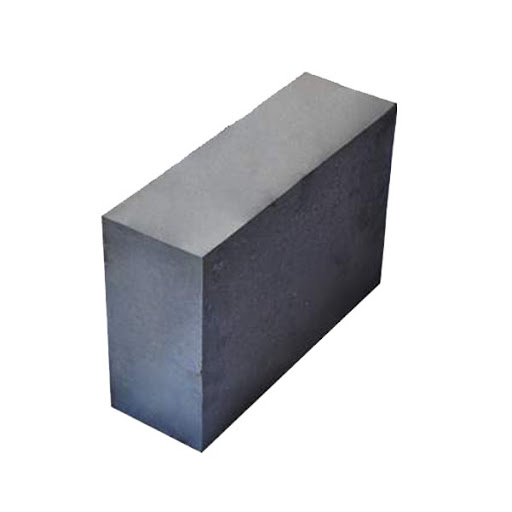

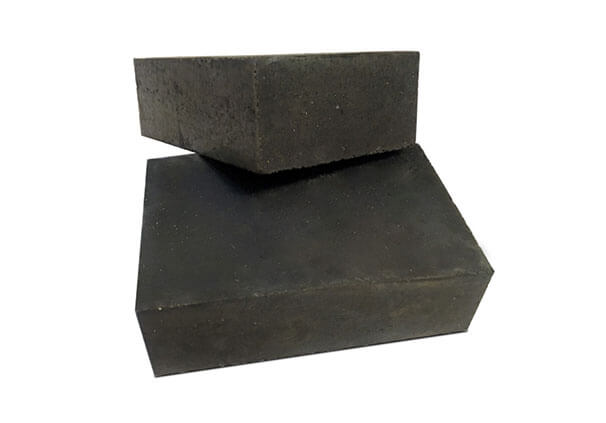

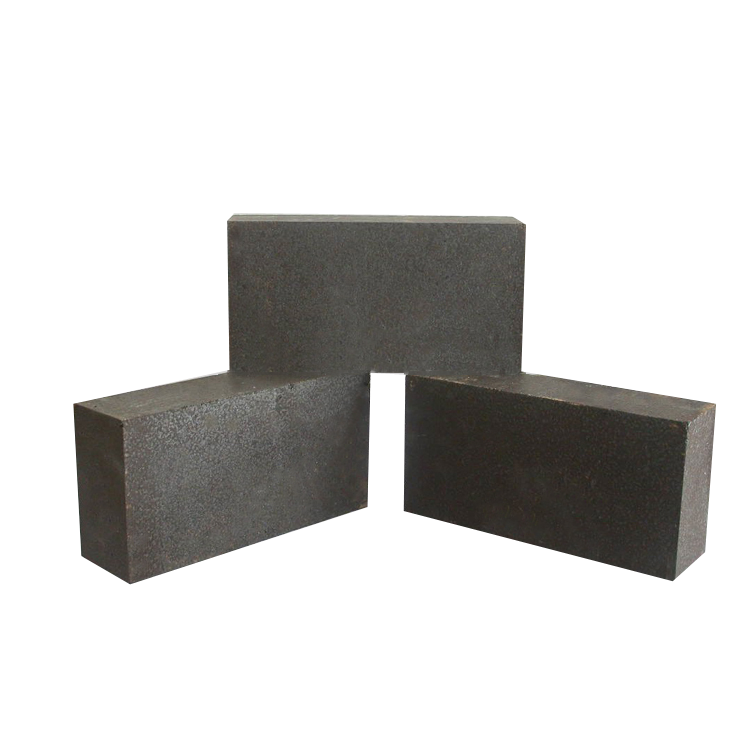

Magnesia Carbon Brick

Magnesia-carbon bricks are made of fused magnesia or sintered magnesia, flake graphite, organic binders and antioxidants as raw materials, and various non-oxide additives are added. It is a composite refractory material combined with a carbonaceous binder.

Characteristics:
1. Good high temperature resistance.
2. Strong resistance to slag.
3. Good thermal shock resistance.
4. Low creep at high temperature.

Application:

Magnesia-carbon bricks are mainly used for the lining of converters, AC electric arc furnaces, and DC electric arc furnaces, and the slag line of ladle.

Technical Data Sheet:

Item	Unit	Magnesia Carbon Brick
		FMC-18	FMC-16	FMC-14
MgO+C	%	≥90	≥88	≥90
Apparent Porosity	%	≤3	≤5	≤4
Bulk Density	g/cm3	≥2.9
Cold Crushing Strength	MPa	≥30	≥25	≥30
Hot Modulus of Rapture (1400℃x0.5h)	MPa	≥5
Application		body	bottom	crown
